Introduction

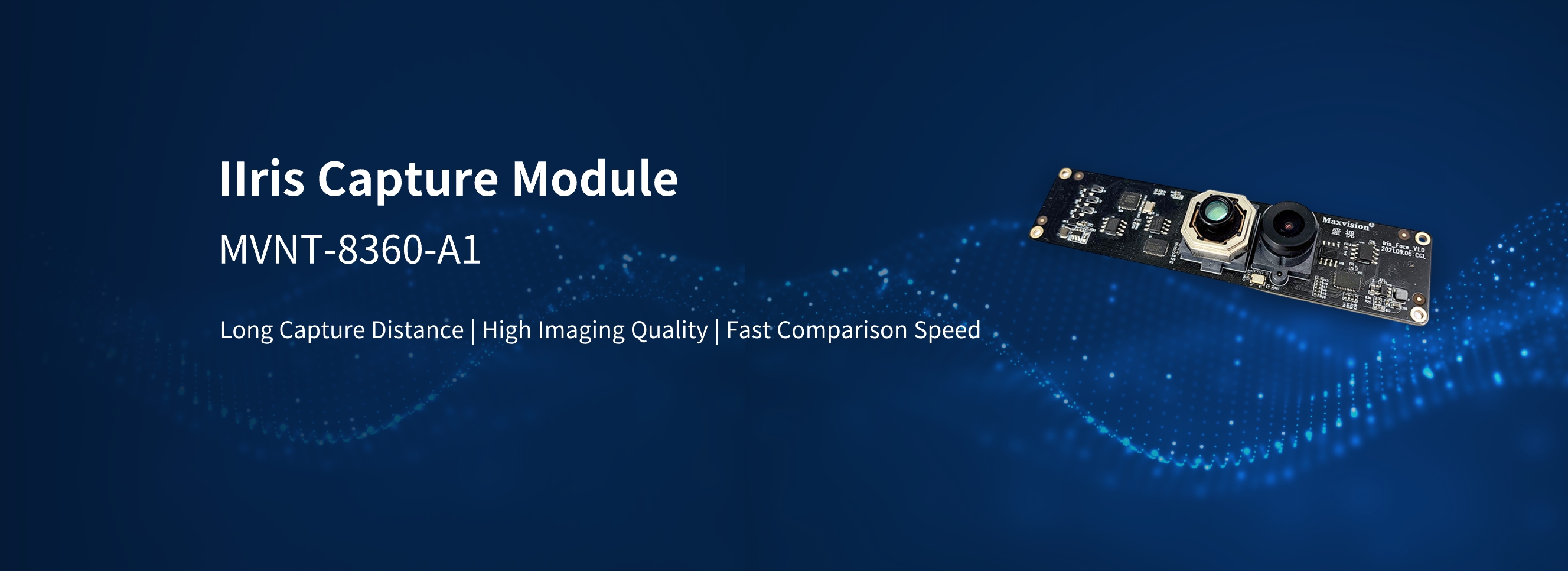

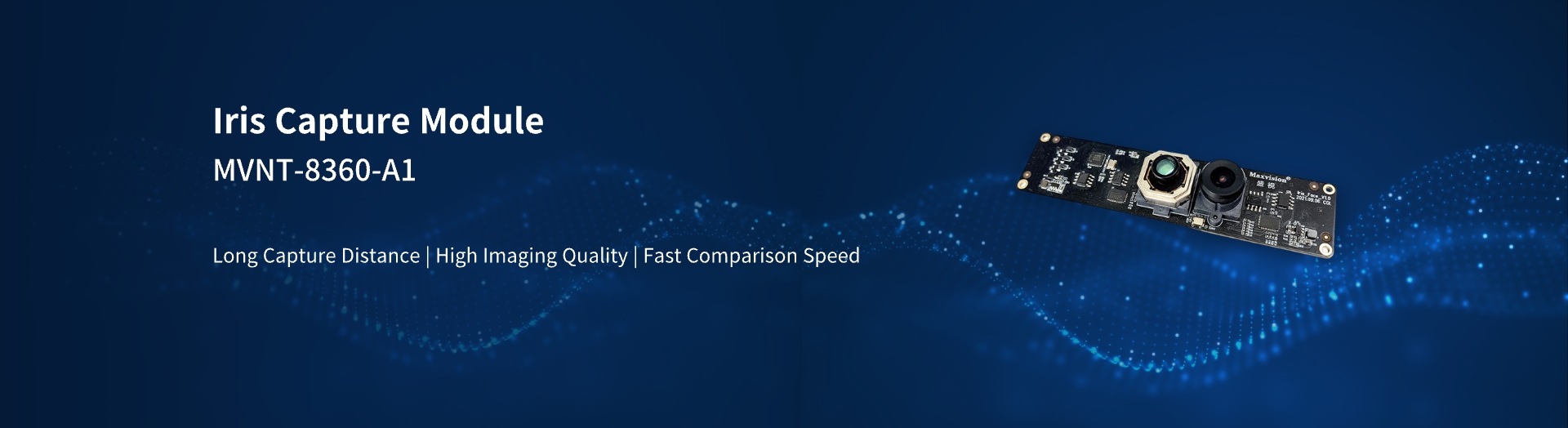

Mvtn-8360-A1 is the latest lris capture module launched by Maxvision. The module adopts the latest iris recognition algorithm, supports the iris capture and comparison function. lt is long capture distance, highimaging quality, fast comparison speed, and supports the cloud platform iris face data management. The module can be integrated with all kinds of identity authentication products, and is widely used in airportsports, prisons, communities, banks and other places requiring identity authentication.

Features

Clear Image

Flexible Capture

Environment Adaptive

Liveness Detection

Auto Exposure Control

Platform Management

Parameters

Model Name

MVNT-8360-A1

Camera Resolution

lris: 5 million Pixels; Face; 2 million Pixels

lris Image Resolution

>640*480

lris lmage Standard

According to lsO29794-6 and ISO19794-6

Max Frame Rate: lris

2592*1944@30fps,Face:1920*1080@30fps

Output Format

MJPG/YUV

Exposure Control

Automatic

Face Height Range

0.8-2.1m

Capture Distance

Iris: 30~70cm, Face: 0.3-2m

Capture Speed

lris < 1S,Face < 0.5S

Near Infrared Light Source

Near Infrared Light, LED Light Source in Accordance withIEC-62471 Standard

Focal Length

Auto Focus,Face: 3.56mm

Operation System

Support Windows7, Windows8, Windows10, Linux System

Communication interface

USB2.0

Power Supply Mode

USB 5V Power Supply, Maximum Input Current s1A

Power Consumption

< 5W

Usage

Embedded

Operating Temperature

-30°C~+70°C

Working Humidity

20%-90%RH,No Condensation

Size

112*26.3*15mm
