Introduction

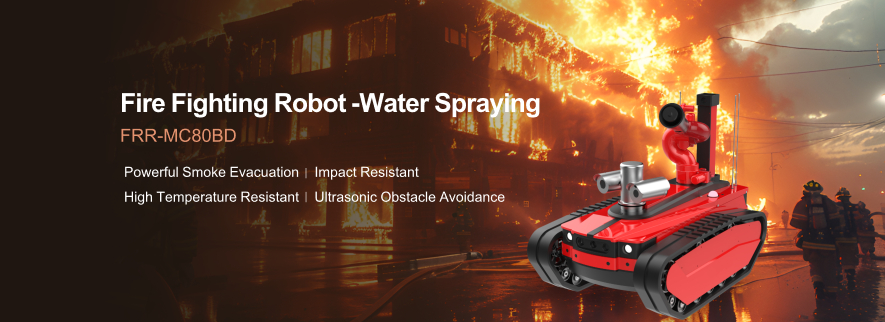

Fire Fighting Robot (Water Spraying) features a steel-sealed structure and is equipped with explosion-proof floodlights andan Explosion-proof PTZ Camera, all certified for explosionprotection. lt includes an ultrasonic obstacle avoidance system, making it resistant to interference from light, dust, and smoke. This robot can replace firefighters in hazardous environments such as flammable, explosive, toxic, oxygen-deficient, or smokydisaster sites, performing tasks such as firefighting, datacollection, and processing feedback. This significantly extends the operational range and capabilities of firefighting personnel.

Features

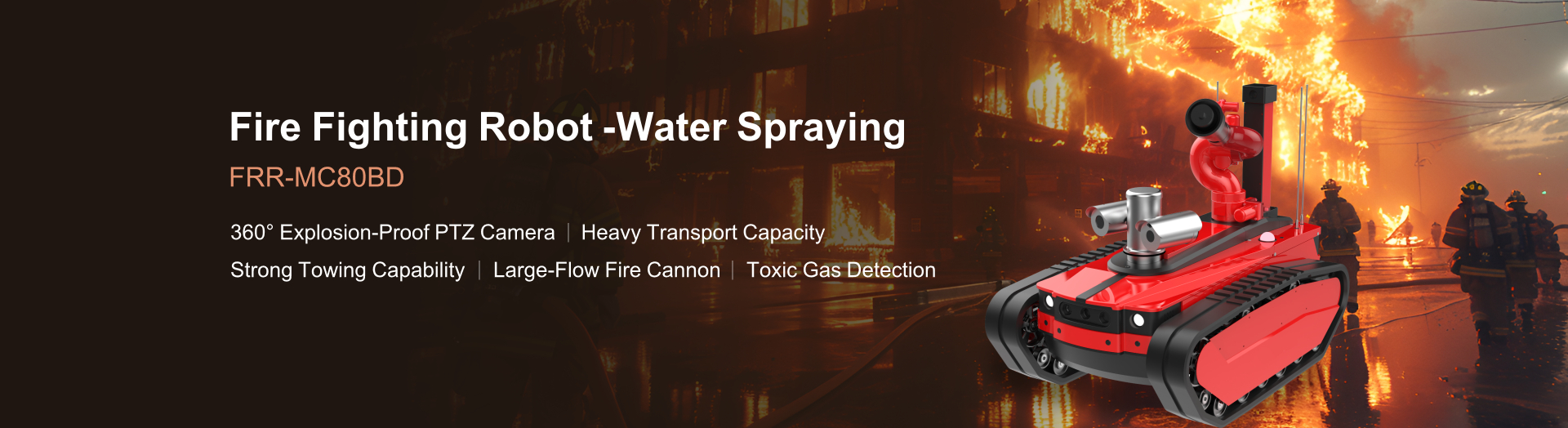

360° Explosion-Proof PTZ Camera

Heavy Transport Capacity

Strong Towing Capability

Large-Flow Fire Cannon

Toxic Gas Detection

Parameters

Battery Voltage

DC 48V

Maximum Speed

1.8m/s

Autonomy

≥3.5h

Charging Time

≤8h

IP Rating

IP66

IECEx Rating

Ex db eb mb llB T4 Gb

Control Mode

10.1-Inch Display with Wireless Remote Control

Minimum Turning Radius

870mm

Horizontal Rotation Angle of the Water Cannon

-170°~+170°(with optional lifting rod -150°+150°)

Vertical Rotation Angle of the Water Cannon

-5°~+70°

Water Flow Rate

80L/s

Water Spray Range

≥85m

Maximum Lifting Height

1650mm

Traction Force

5020N

Product Weight

≤570kg

Size

≈1690*1035*1245mm
