Introduction

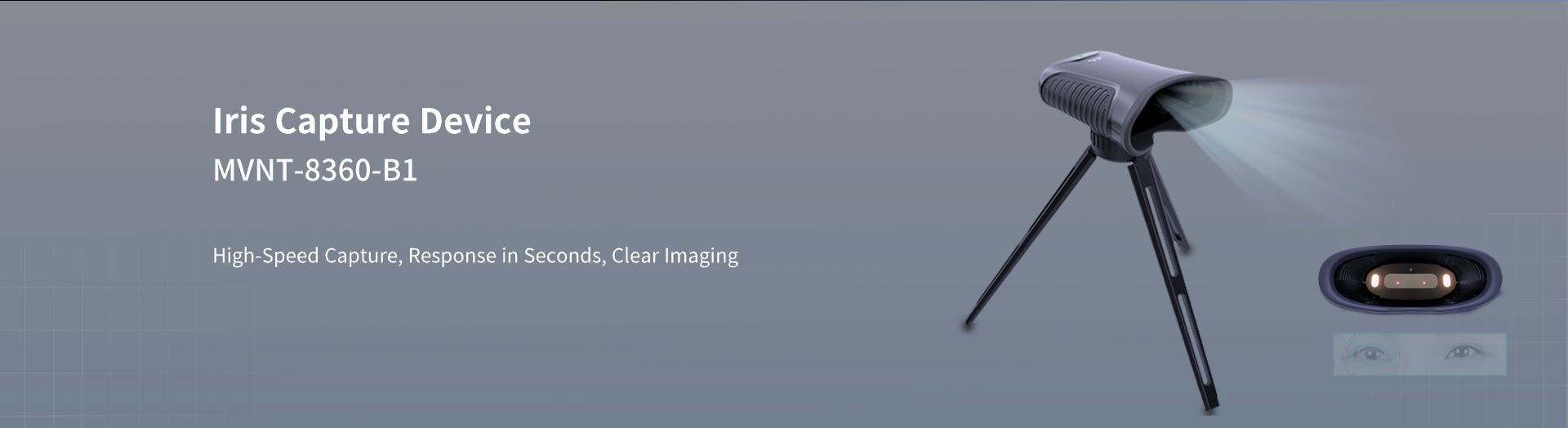

MVNT-8360-B1 lris capture device is an easy-to-use binocular iris capture device from Maxvision, which can be widely used in all kinds of scenarios that require iris bio-information acquisition for record. The product is suitable for large-scale, centralized, rapid capturing of crowd iris data and database setup scenarios plug-and-play, flexible deployment and simple operation.

Features

Response in Seconds

Fully Enclosure and Block-out Design

Infrared Light Source Fill

Support USB Interface

Secondary Development

Parameters

Camera Resolution

2592*1944

lris Image Resolution

640*480

lris lmages

According to lSO29794-6 and ISO19794-6

Exposure Control

Automatic

White Balance

Automatic

Capture Mode

Single-Camera Binocular Capture

Capture Time

<1S

Near Infrared Light Source

Near-Infrared Light, LED Light Source in Accordance with IEC-62471 Stand

Capture Distance

12cm

Operation System

Windows7 and above, Linux, Android

USB Cable Length

1.5m

Communication Interface

USB

Power Supply

USB 5V Power Supply

Maximum Input Current

<400mA

Power Consumption

< 2W

Operating Temperature

-30°C to 60°C

Operating Humidity

20%-90%RH,No Condensation

Installation Mode

Handheld or Desktop

Protection Level

IP54

Size

162.5*174.5*70mm
