Introduction

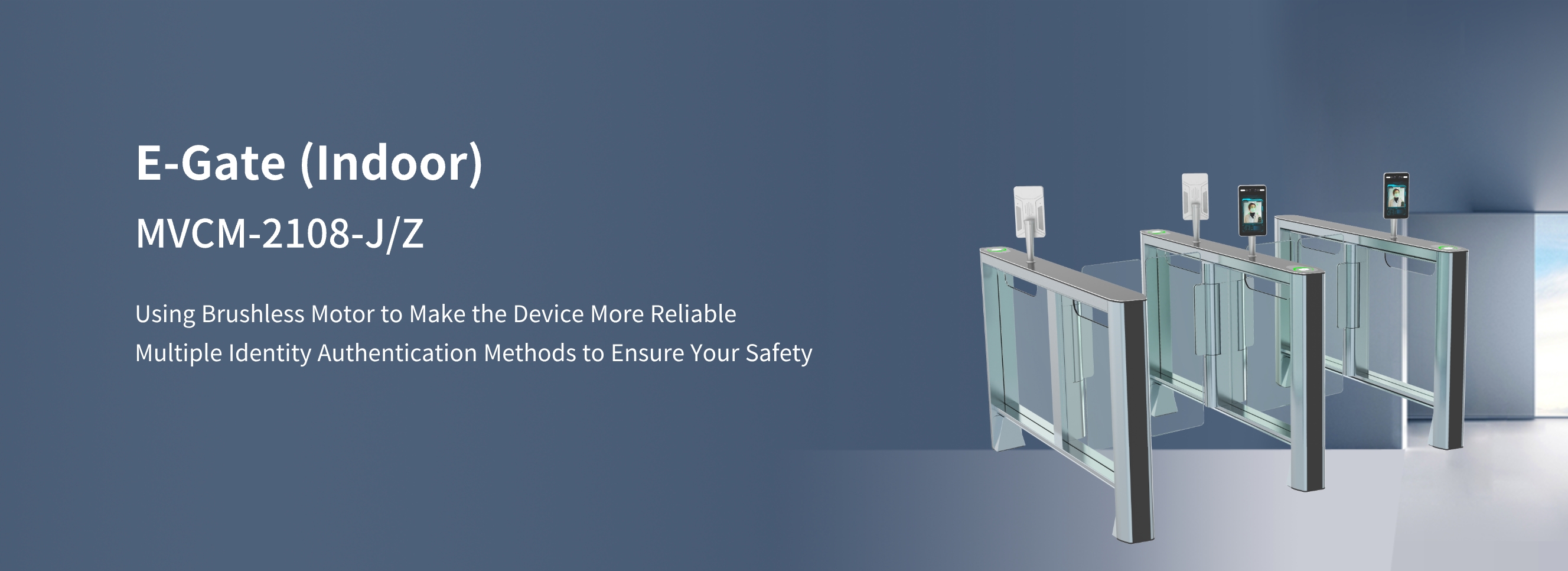

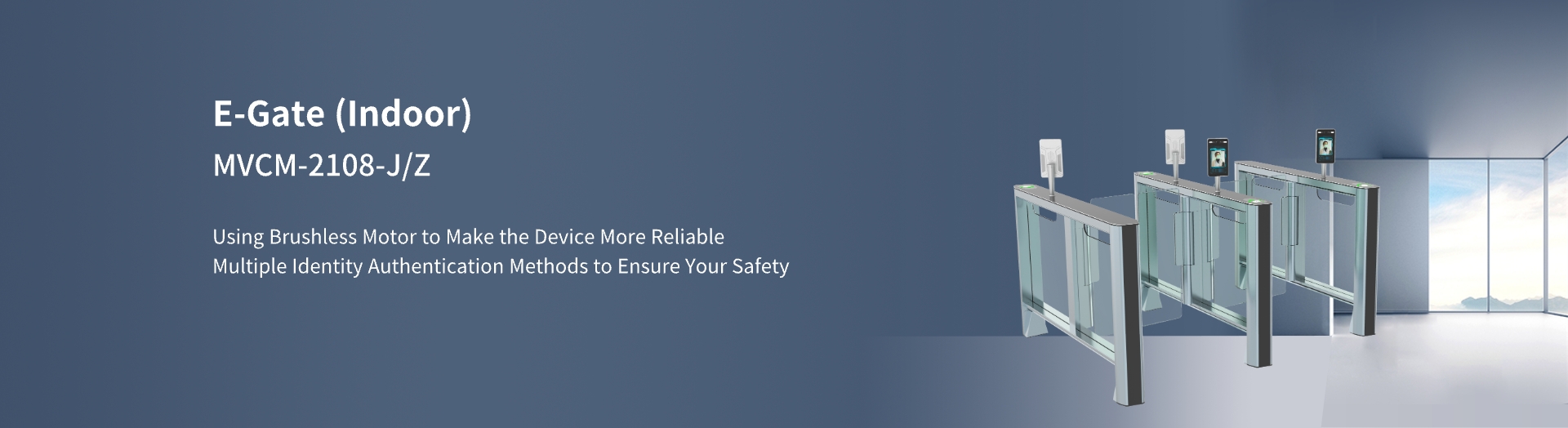

Maxvision E-gate is designed with aluminum profile + high-transparency tempered glass, which is durableand corrosion-resistant. lt has two-way traffic, inteligent anti-pinch, guidance prompts and other functions. It is equipped with face recognition, IC card swiping, QR code, and remote door opening and closing. Functional modules such as these implement multiple authentication access methods. The equipment has high intelligent integration and strong stability, and is suitable for various entrance and exit identity authentication control places.

Features

Extra Long Service Life

The Light Curtain is Equipped with a Self-developed Rain-proof Algorithm

Remote Control, Unattended

Channel Status Can be Remotely Viewed and Traced

Parameters

Open/Closing Speed

≤1s (Adjustable)

Noise

≤40dB

MCBF

≥20M

Communications Interface

TCP/IP

Rated Torque

≤7N·m

Working Voltage

AC 90-264V, 47-63Hz

Iinfrared Sensor Quantity

48 Groups

Screen Size

8" HD IPS Screen

Face Recognition Accuracy

0.01% False Recognition Rate, 99% Pass Rate

Face Recognition Camera

Binocular Camera with 2MP

ID Card Swipe

Comply with IS0 14443-A/B standard, card reading frequency 13.56MHz

Scan Access

One-dimensional and two-dimensional code recognition, reading accuracy ≥3mil

Usage Environment

Outdoor / Indoor

Movement Style

Swing Gate

Channel Width

600~1200mm

Size

L*W*H=1500*150*1000mm
