Introduction

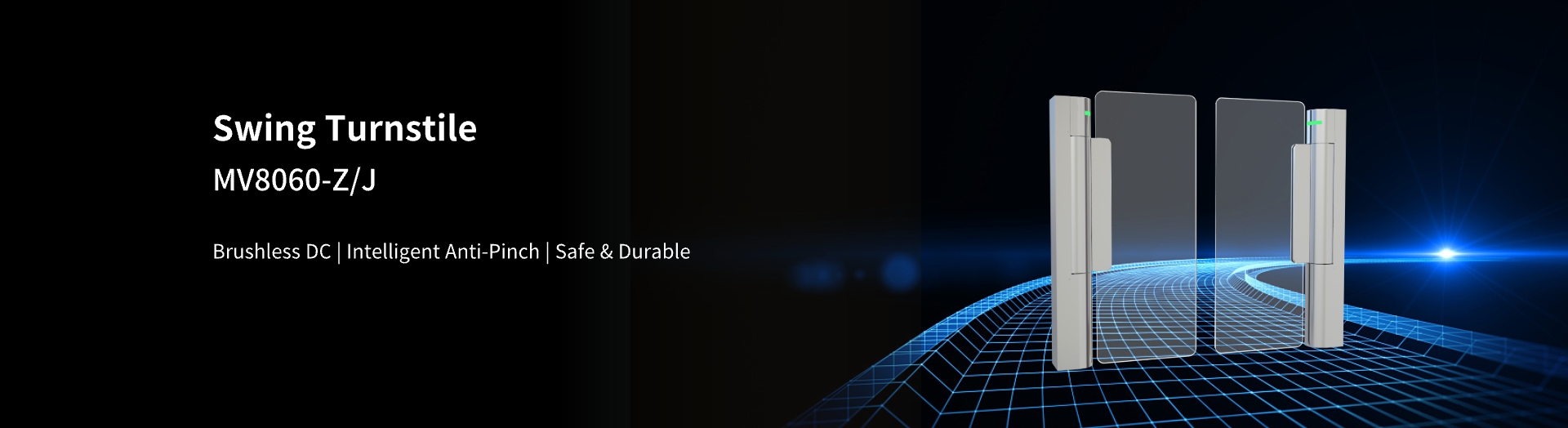

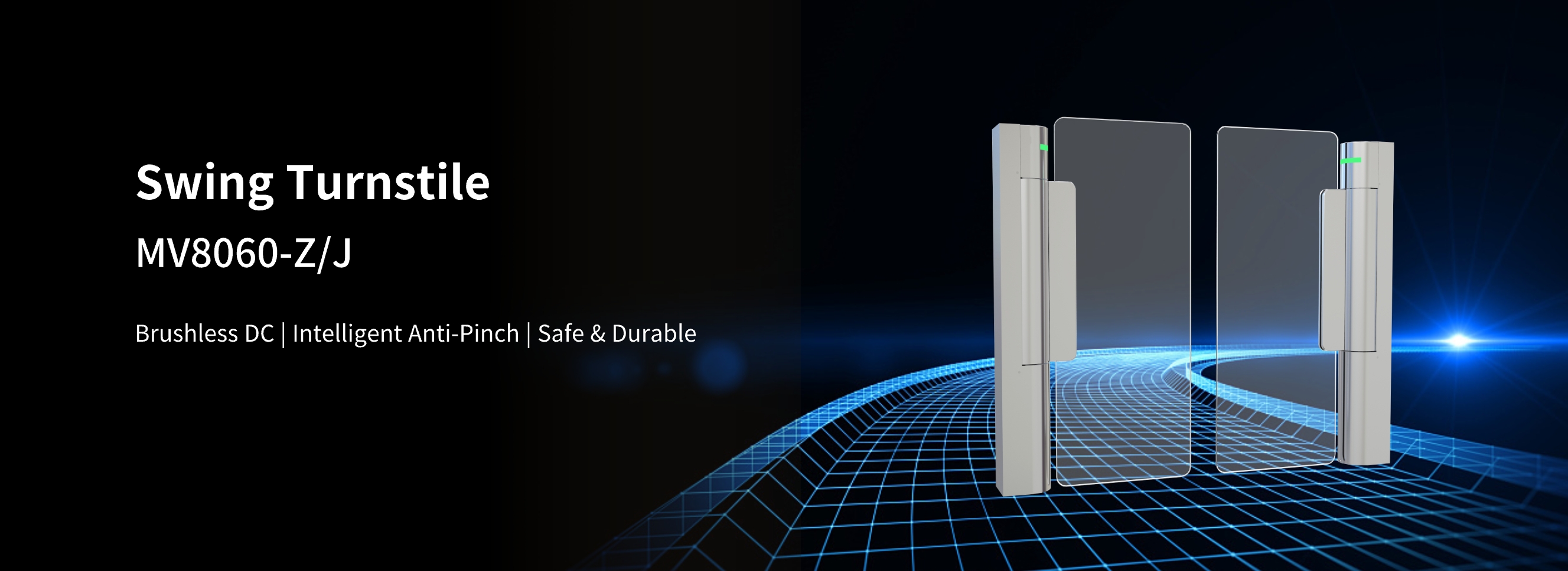

Maxvision pedestal swing gate is a personnel control product used in many occasions. The main body of the pedestal swing gate is made of 304 stainless steel + high permeability tempered glass. The features of DC brushless servo motor, super "core", extremely quiet, long life, swing gate design, large inspection space, to make it used with all kinds of channel products. And it widely used in communities, parks, schools, enterprises andother entrance and exit places.
Features
Precision Movement, Stable and Reliable
Brushless Motor, Efficient Opening and Closing
Intrusion Detection, Anti-intrusion and Anti-pinch
Large Channel Width, Suitable for Multiple Scenarios
Parameters
Model
MV8060-Z
Motor
Direct Drive Motor
Working Voltage
DC48V
Open/Close Speed
≤1S ( Adjustable )
Noise
≤40dB
Service Life
≥20 Millions Times
Communication Interface
RS232
Rated Torque
≤7N·m
Operating Environment
Indoor
Movement Type
Swing
Passage Width
600-1200mm
Dimension
89mm(L)x100mm(W)x700(H)
Model
MV8060-J
Motor
Gear Motor
Working Voltage
DC24V
Open/Close Speed
≤1S ( Adjustable )
Noise
≤50dB
Service Life
≥10 Millions Times
Communication Interface
RS232
Rated Torque
≤32N · m
Operating Environment
Outdoor
Movement Type
Swing
Passage Width
600-1200mm
Dimension
89mm(L)x100mm(W)x700(H)
