Introduction

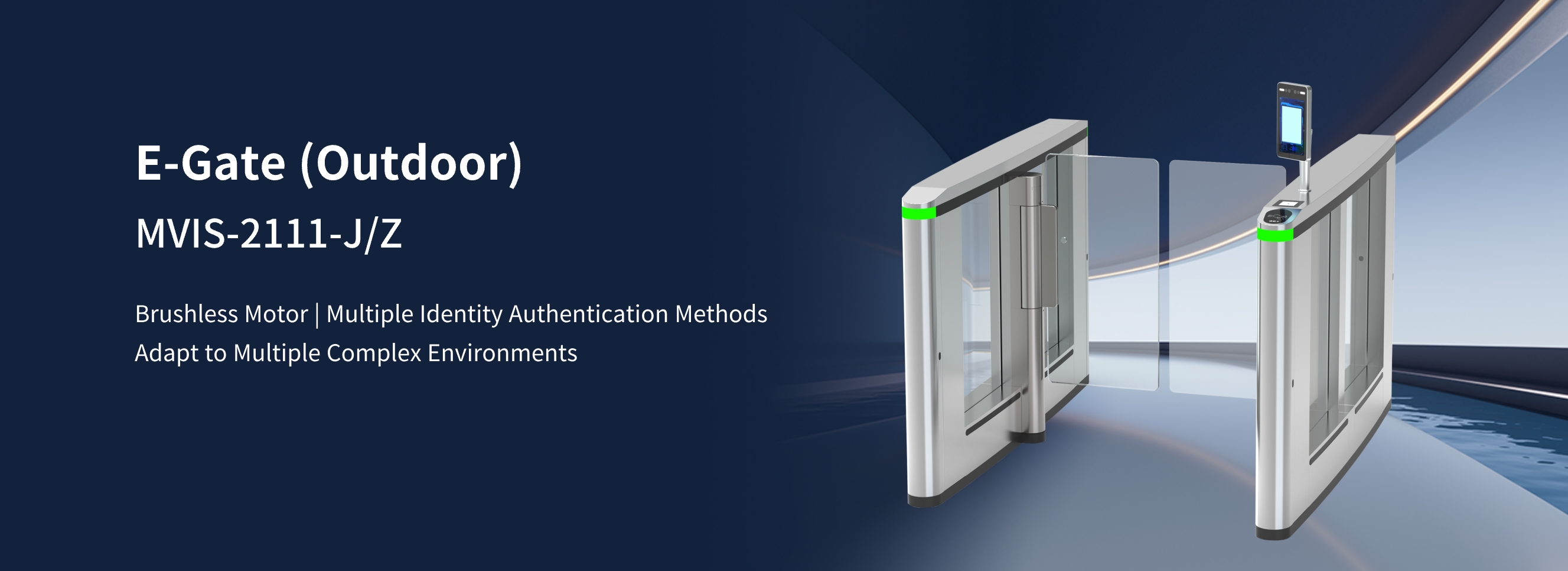

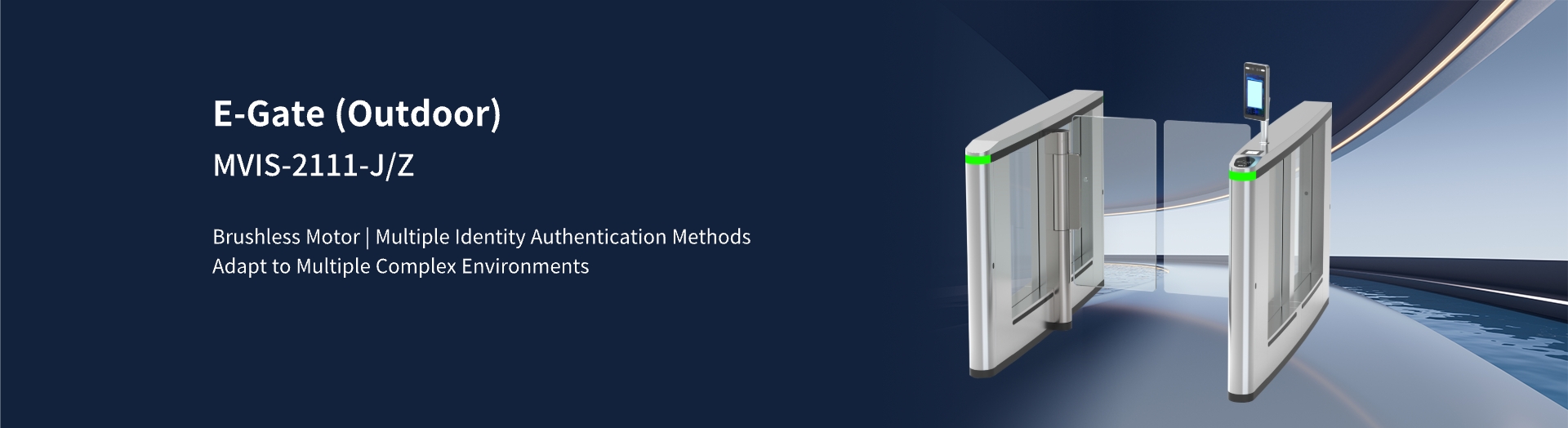

Maxvision E-gate is designed with 304 stainless steel + high-transparency tempered glass, which is durableand corrosion-resistant. lt has two-way traffic, inteligent anti-pinch, guidance prompts and other functions. It is equipped with face recognition, IC card swiping, QR code, and remote door opening and closing. Functional modules such as these implement multiple authentication access methods. The equipment has high intelligent integration and strong stability, and is suitable for various entrance and exit identity authentication control places.

Features

The Gate is Super lmpact Resistant

The Light Curtain is Equipped with a Self-developed Rain-proof Algorithm

Extra Long Service Life

304+316 High Quality Stainless Steel Design

Parameters

Open/Closing Time

≤1s (Adjustable)

Noise

≤40dB

MCBF

≥20M

Communications Protocol

TCP/IP

Rated Torque

≤7N·m

Operating Voltage

AC 90-264V, 47-63Hz

Infrared Sensor Quantity

56 Points

Screen Size

8" HD IPS Screen

Face Recognition Accuracy

0.01% False Recognition Rate, 99% Pass Rate

Face Recognition Camera

Binocular Camera with 2MP

IC Card Swipe

Comply with lS0 14443-A/B standard, card reading frequency 13.56MHz

Scan Access

One-dimensional and two-dimensional code recognition, reading accuracy ≥3mil

Usage Environment

Outdoor / Indoor

Movement Style

Swing Gate

Channel Width

600~1200mm

Size

L*W*H=1600*150*1000mm
